ZONDA

HIGH ACCURACY AND HEAVY PAYLOAD

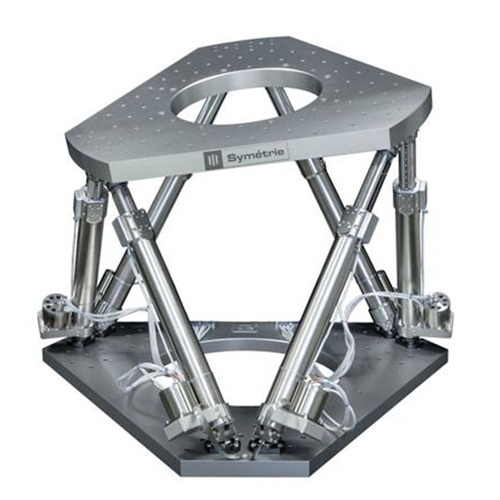

ZONDA hexapod is a new high-performance 6DOF system meeting applications requiring both high precision, stability, accuracy, heavy load and large travels.

Designed to position up to 400 kg payload with a resolution of 0.1 µm only, ZONDA hexapod offers great travel with 400 mm in XY, 300 mm in Z, and 40 ° in the three rotations Rx, Ry and Rz.

ZONDA hexapod has unmatched accuracy and thermal stability characteristics thanks to the integrating Invar components with a very low CTE (Coefficient of Thermal Expansion), linear absolute encoders integrated as a standard in the actuators and the design of particularly rigid joints.

ZONDA hexapod can be used in any orientation: vertical, horizontal, upside down…

Optionally, ZONDA hexapod can be high vacuum (10-6 mbar) or cleanroom compatible.

SPECIFICATIONS

Travel range : ± 200 mm / ± 20 °
Resolution : 0.1 µm
Repeatability : ± 0.25 µm / ± 1 µrad
Payload : 400 kg

APPLICATIONS

Instrumentation
Optics
Test laboratories
Aeronautics and spatial
Metrology
Synchrotrons

DOWNLOAD

Fiche produit

Datasheet (PDF)

STEP

3D STEP (ZIP)

3D

3D view (PDF)

ELECTRONICS

Electronical rack
 Learn more about our powerful controller
Software
 Read more about our ergonomic software

PUBLICATIONS

ZONDA on a hard X-ray beamline
